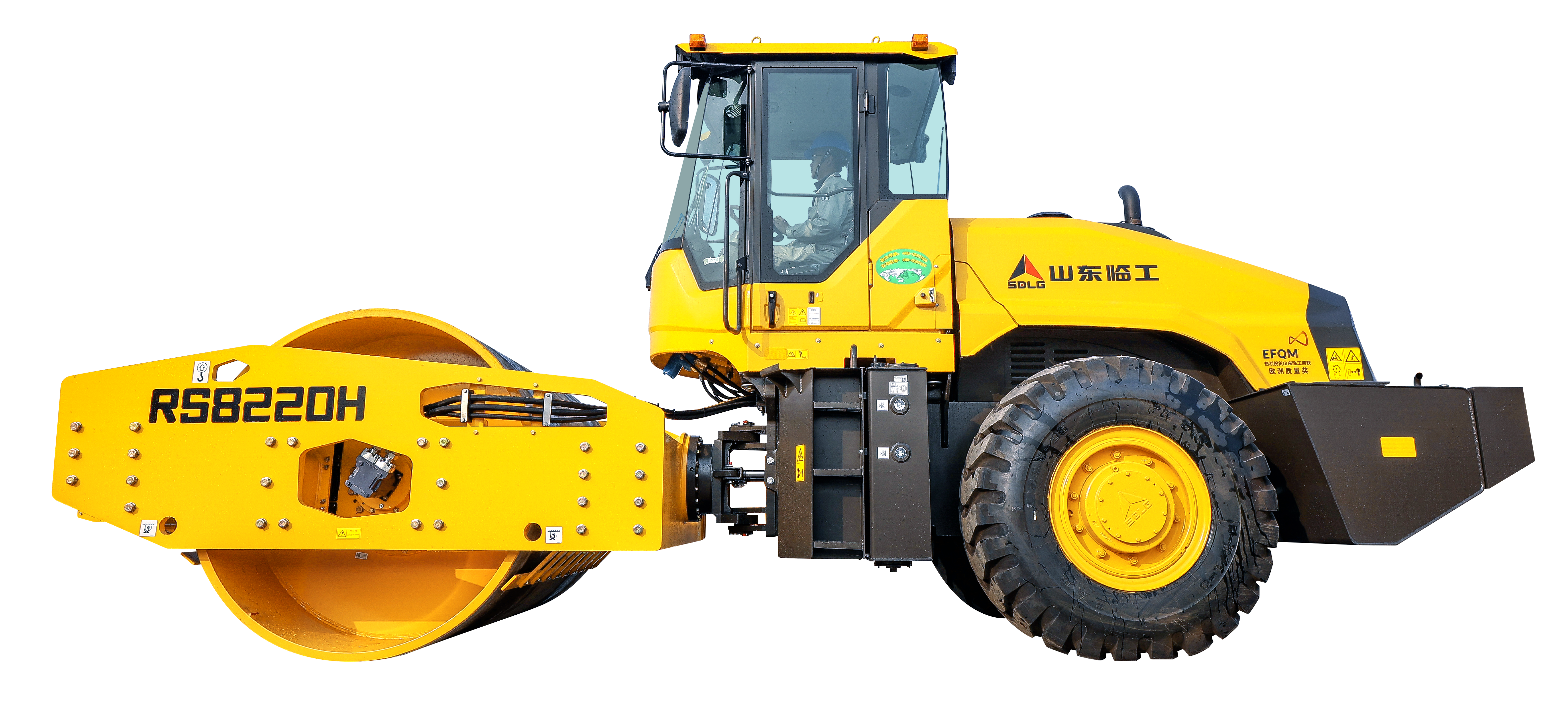

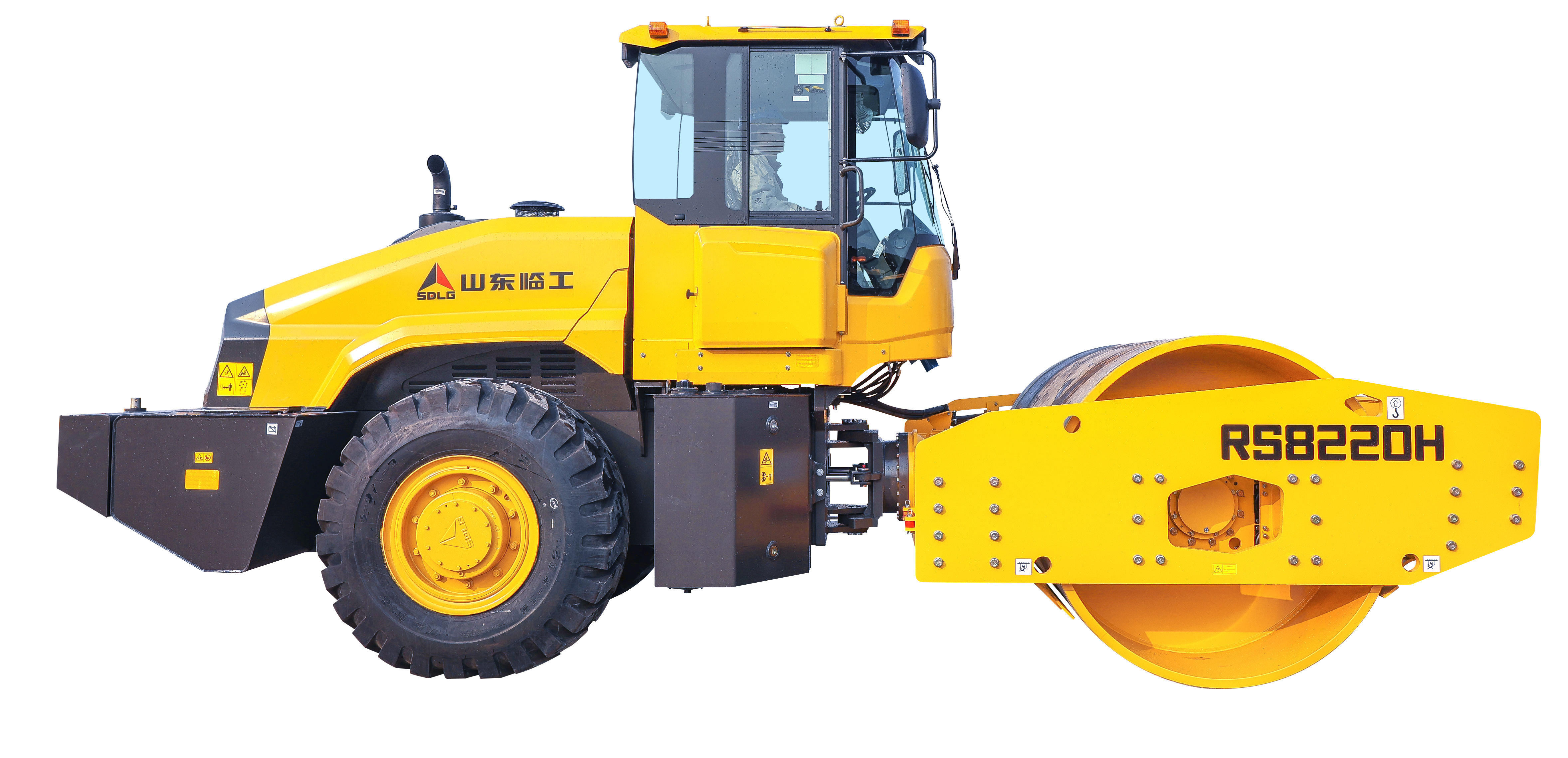

RS8220H is a mechanical single-drive single-steel-wheel vibratory roller, which can effectively compact various soil layers and rock fill. It is at the industry-leading level in terms of compaction performance, driving performance, handling performance, reliability, and maintenance. It is an ideal compaction equipment for high-grade highways, airports, ports, railways, dams, and industrial sites.
Power System: WEICHAI high-pressure common rail engine, the mainstream configuration in the industry, has sufficient accessories, is convenient to purchase and has good service. The engine has high power and strong dynamics.
Hydraulic System: Hydraulic components from internationally renowned brands ensure reliable quality. With large displacement and high speed, they enable high compaction efficiency.
| Operating weight | 22000KG |
| Engine model | WP6G190E301 |
| Rated power | 140KW |
| Drive type | Tranmission drive |
| Gears | F3 R2 |
| Nominal amplitude (high/low) | 2.0/1.0mm |
| Frequency (low/high) | 28/33HZ |
| Excitation force (high/low) | 402/280KN |
| Static linear load (high/low) | 511N/cm |
| Fuel tank | 270L |
| Overall length | 6851mm |
| Overall width | 2353mm |
| Overall heigth | 3180mm |
| Width of vibratory drum (D/E) | 2150mm |
| Wheelbase | 3507mm |
| Min.ground clearance | 400mm |
| Theoretical gradeability | 0.3 |
