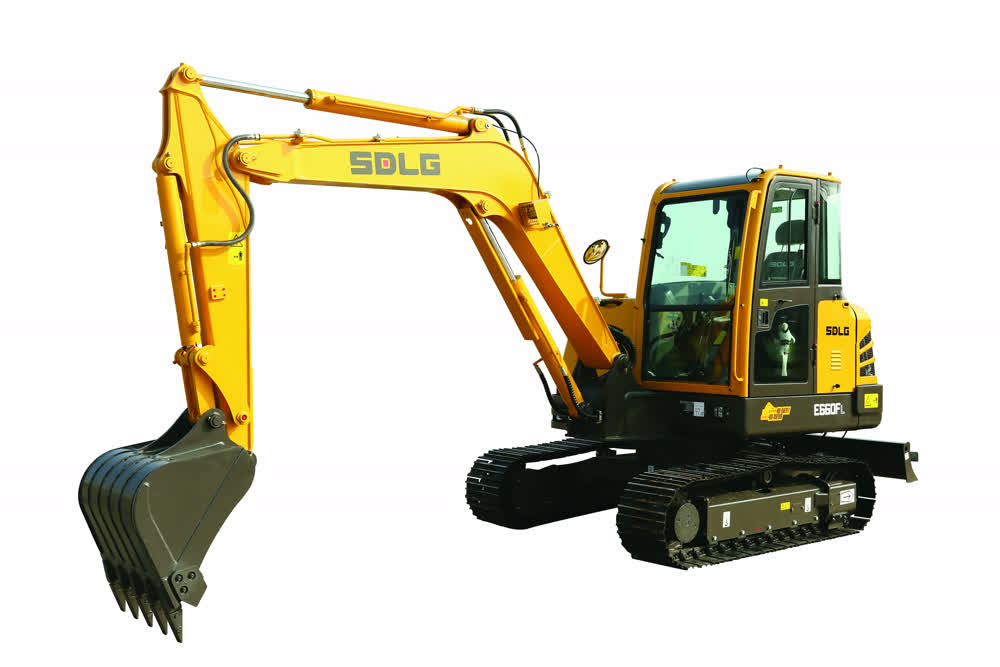

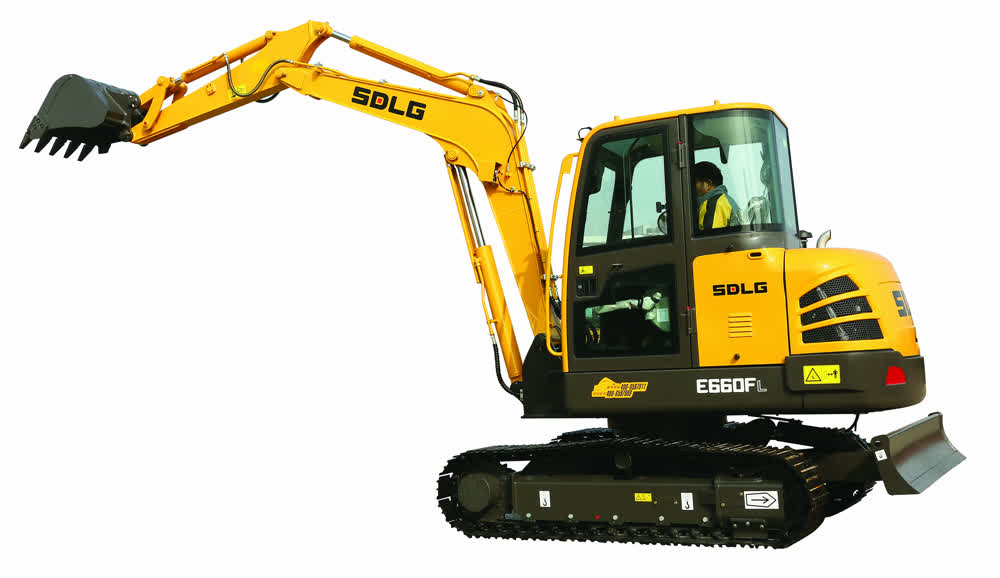

Excavator E660FL
Operating Weight (kg)
Bucket capacity(m³)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
Technical Parameter
| Operating Weight (kg) | 6050kg |
| Bucket capacity range | 0.1-0.3 |
| Average ground pressure | 34mm |
| Slewing speed | 11.5r/min |
| Traveling speed (low/high) | 2.4/4.8km/h |
| Maximum digging force | 45kN |
| Altitude | 1400m |
| Wading depth | 640mm |
| Engine model/Drive Motor Model | 4TNV98-EXSLGC |
| Engine power | 39KW |
| Maximum flow rate | 137L/min |
| Fuel specifications and filling amount | 135L |
| Overall length | 5945mm |
| Overall width | 1960mm |
| Overall height | 2660mm |
| Wheel track | 1540 |
| wheelbase | 1990mm |
| Crawler wheelbase/Wheelbase | 1990mm |
| Maximum digging radius | 6125mm |
| Maximum digging depth | 3760mm |
| Maximum discharge height | 4220mm |
| Overall length during transfer | 5945mm |
| Shovel width (with band edge) | 810mm |
| Maximum digging depth under length of bottom surface of 2.5m | 3325mm |
| Maximum digging height | 5915mm |
| Contour dimension of complete machine (transfer position) | 5945*1960*2660mm |
| Overall width of upper assembly | 1870 |
| Overall width of chassis | 1960mm |
| Overall height to cab top | 2660mm |
| Rear slewing radius | 1670mm |
| Overall height to hood top | 1730mm |
| Ground clearance of upper assembly | 720mm |
| Overall length of crawler | 2540mm |
| Wheel track of crawler/Wheel track | 1540mm |
| Track shoe width | 400mm |
| Minimum ground clearance | 365mm |
| Overall height of working mechanism during transfer | 1945mm |
| Maximum digging radius of reference ground | 5975mm |
| Bucket capacity(m³) | 0.21m³ |
| Maximum vertical digging depth | 2500mm |
| Arm length | 1540mm |
| Boom length | 3030mm |
| Minimum front turning radius | 2260mm |
