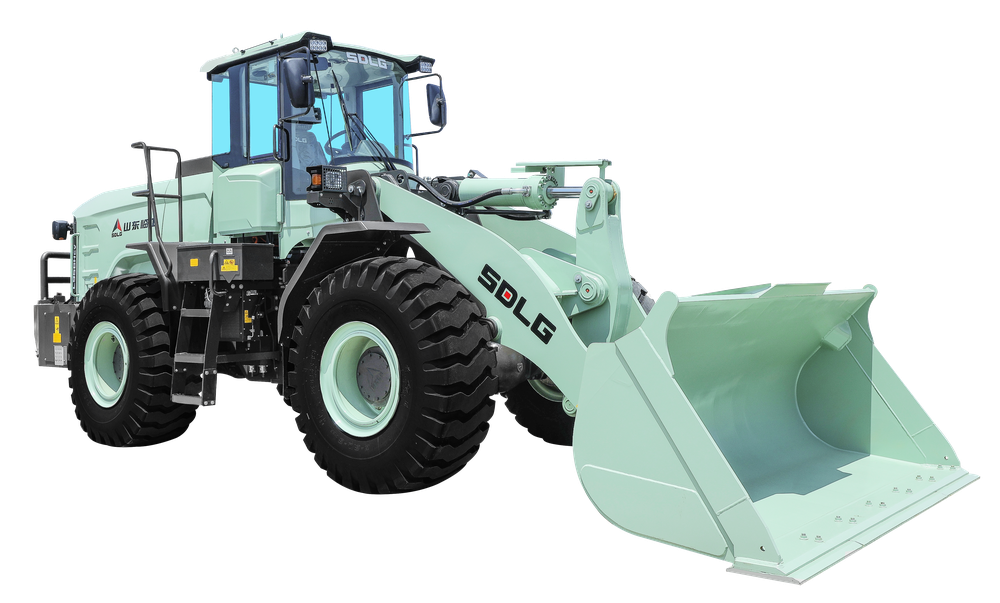

Wheel Loader L956HEV

Standard bucket capacity

3.6m³

Rated load

5800KG

Operating weight

19500KG

Rated power

125KW
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
A passion for performance.
At SDLG Construction Equipment, we’re not just coming along for the ride. Developing products and services that raise productivity – we are confident we can lower costs and increase profits for industry experts. Part of the LG Group, we are passionate about innovative solutions to help you work smarter – not harder.

1.L956HEV, a 5T electric loader built by SDLG based on its mature platform and the high-quality EIC resources in the industry through meticulous adjustment, enjoys reasonable performance matching and high operation comfort.
2.Zero emission, low noise and immunity to the low oxygen content environment in the plateau;.
3.Bucket takes a structure with superhigh strength, which is durable and easy to be fulfilled.
4.An intelligent control system of deep learning is adopted, which can automatically adjust the power output according to load, vehicle speed and other conditions of the machine, making the machine operation easy and comfortable, and enabling good power performance, small impact and high operating efficiency.
5.SDLG thermal management system: a thermal management system is equipped for the battery, motor and ECU, enabling the machine to work normally under different ambient temperatures and load conditions; the thermal management system is highly intelligent, specifically, it can intelligently adjust the cooling power according to the amount of heat generated to ensure the safety and reliability of the system.
6.The SDLG H-generation cab of ergonomic design is adopted, which features reasonable button layout, large space and good vision; and is equipped with high-grade suspension seat adjustable from multiple angles and dimensions.
7.The machine is adopted with a 7-inch LCD, which transmits message via bus and can display a lot of information of the machine; it also features bus A/V and Keypad virtual operation, ensuring high human-machine interaction.
8.All lamps of the vehicle are of LED type.
9.Cables of well-known brands in the industry with good wear resistance, favorable wear resistance and long service life are used.
Technical Parameter
Standard bucket capacity 3.6m³
Rated load 5800KG
Operating weight 19500KG
Type of Battery LiFePo4
Rated power 125KW
Max Breakout force 175KN
Max Tractive force 170KN
Battery Capacity 350kWh
Battery Voltage 579.6V
Battery Endurance 6-8h
Overall length 8770mm
Overall width 3016mm
Tire size 23.5-25
Overall heigth 3460mm
Wheelbase 3400mm
Ground clearance 435mm
Dumping angle 45°
Dumping height 3060mm
Turning radius at over bucket 7240mm
Turning radius at inside of tires 6360mm
