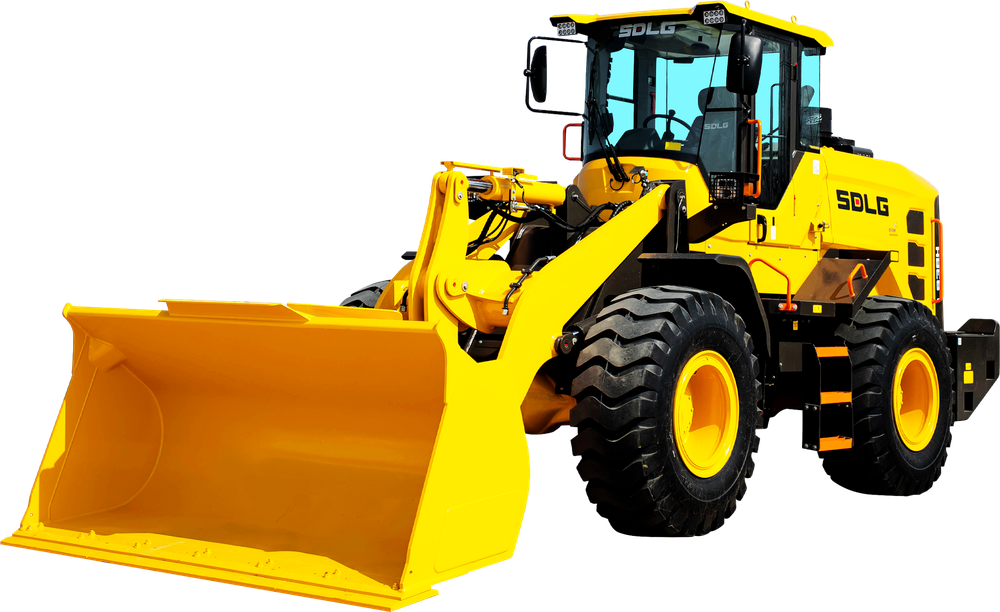

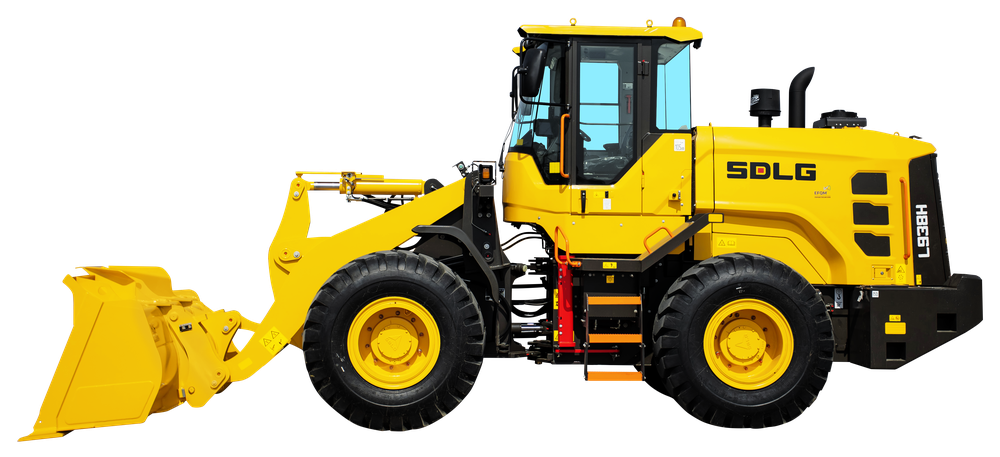

Wheel Loader L938H

Rated load

3500KG

Operating weight

12600KG

Rated power

105KW
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
A passion for performance.
At SDLG Construction Equipment, we’re not just coming along for the ride. Developing products and services that raise productivity – we are confident we can lower costs and increase profits for industry experts. Part of the LG Group, we are passionate about innovative solutions to help you work smarter – not harder.

1. The L938H is equipped with ZF electric transmission and large 20.5-R25 tires, transmitting power reliably.
2. The full variable hydraulic system decreases overflow loss and fuel consumption.
3. Hydraulic-driven reversible cooling fan optimizes cooling and engine efficiency by varying the fan speed to maintain the appropriate water and oil temperatures.
4. Pilot single handle with FNR, KD function, and attachments quick connect function reduces operator fatigue and improves productivity.
5. ROPS&FOPS certified cab with expanded glass viewing area, rear-view camera, and four LED working lights.
6. All pertinent information is monitored by the conveniently located screen within the operator’s field of vision.
7. Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
Technical Parameter
Standard bucket capacity 2.1m³
Rated load 3500KG
Operating weight 12600KG
Engine WP6G140E330
Rated power 105KW
Max Breakout force 96KN
Max Tractive force 100KN
Tire size 17.5-25
Fuel tank 200L
Overall length 7320mm
Overall width 2520mm
Overall heigth 3170mm
Wheelbase 2850mm
Ground clearance 370mm
Dumping angle 45°
Dumping height 2930mm
Turning radius at over bucket 6065mm
Turning radius at inside of tires 5250mm
