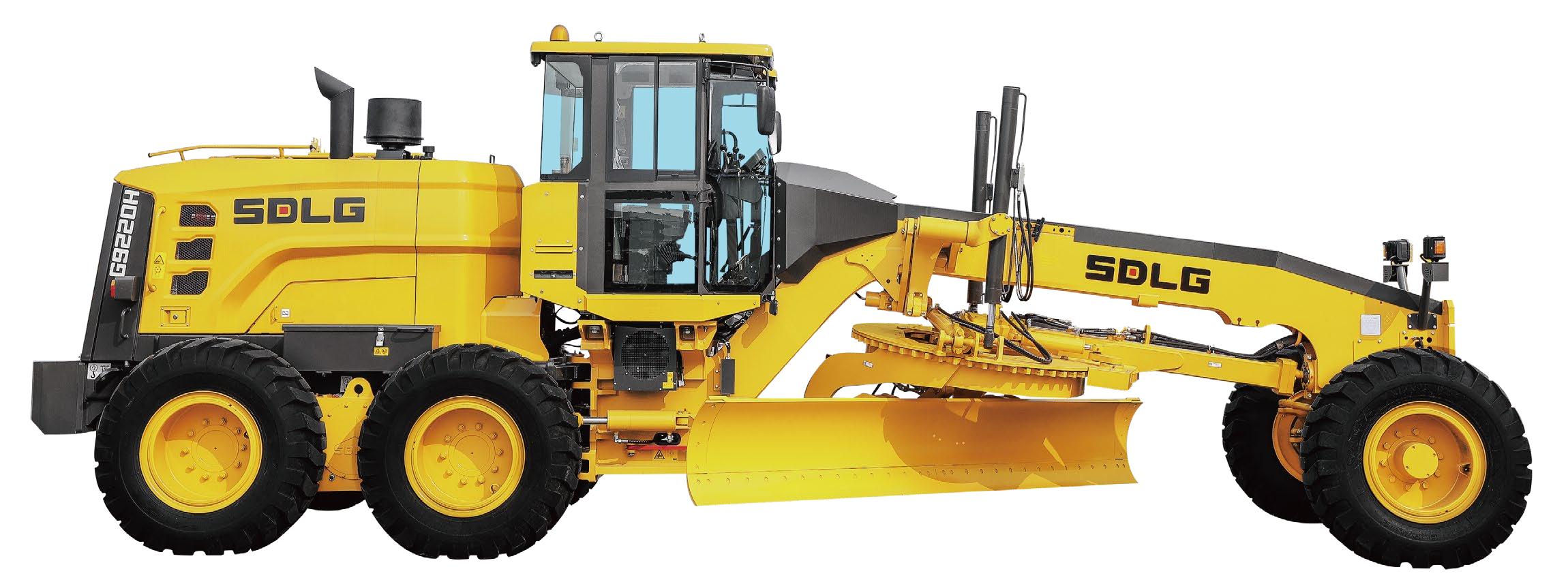

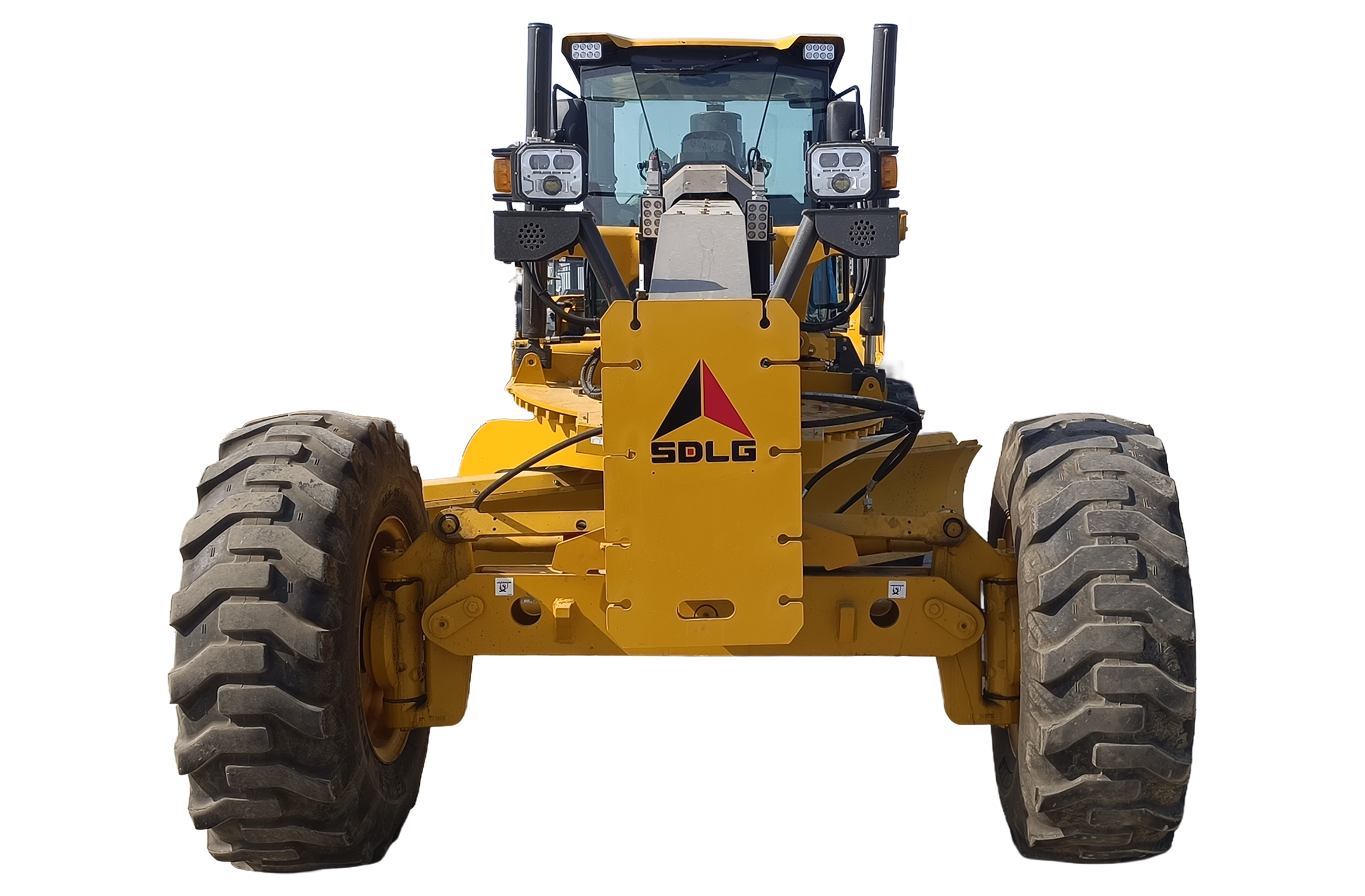

Motor Grader G9220H

Overall Working Weight (kg)

16500~17100

Rated Power (kW)

169
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
  • Optimized Power & Efficiency: The 169 kW engine provides strong, reliable performance for efficient material handling and consistent grading power, ensuring high productivity with optimized fuel economy.

  • High-Productivity Blade Performance: The 14-foot moldboard offers an excellent balance of width and control, allowing for efficient coverage and precise finish grading, sloping, and drainage work.

  • Superior Stability & Maneuverability: Its well-balanced weight distribution and chassis design provide excellent stability for accurate blade work, along with the agility needed for operating in varied and confined spaces.

  • Operator-Focused Design: The cab is engineered for comfort and efficiency, featuring enhanced visibility, intuitive controls, and a focus on ergonomics to reduce operator fatigue and boost productivity over long shifts.

  • Built for Reliability & Ease of Maintenance: Constructed with durable components and designed for straightforward service access, the G9220H ensures high uptime and lower long-term operating costs.

Technical Parameter
Overall Working Weight (kg) 16500~17100
Rated Power (kW) 169
Max. Tractive Force (kN) 86.7 | 85.3
Overall Dimension(L×W×H)(mm) 8975*2710*3240
Max. Inclination Angle of Front Wheel (°) ±18
Max. Swing Angle of Front Axle (°) ±16
Max. Steering Angle of Front Wheel (°) ±50
Cutter Size(LxHxT)(mm) 4267×575×25
Min. Turning Radius (m) 7.6
Cutting Depth of Blade (mm) 787
Max. Speed (km/h) 39
Engine Model BFM8-22T2
Emission Standard China Stage Ⅱ
Fuel Tank Capacity (L) 270
