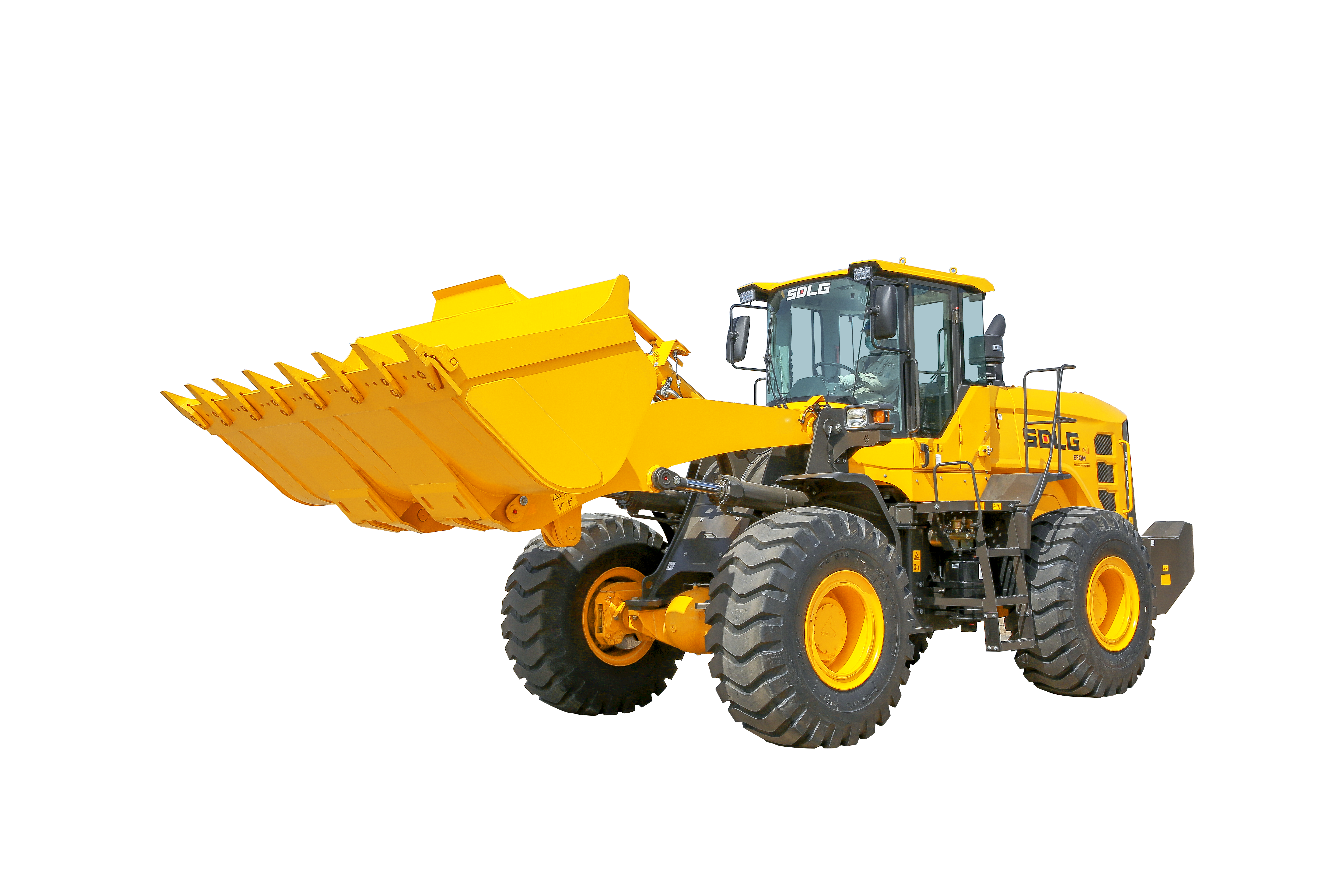

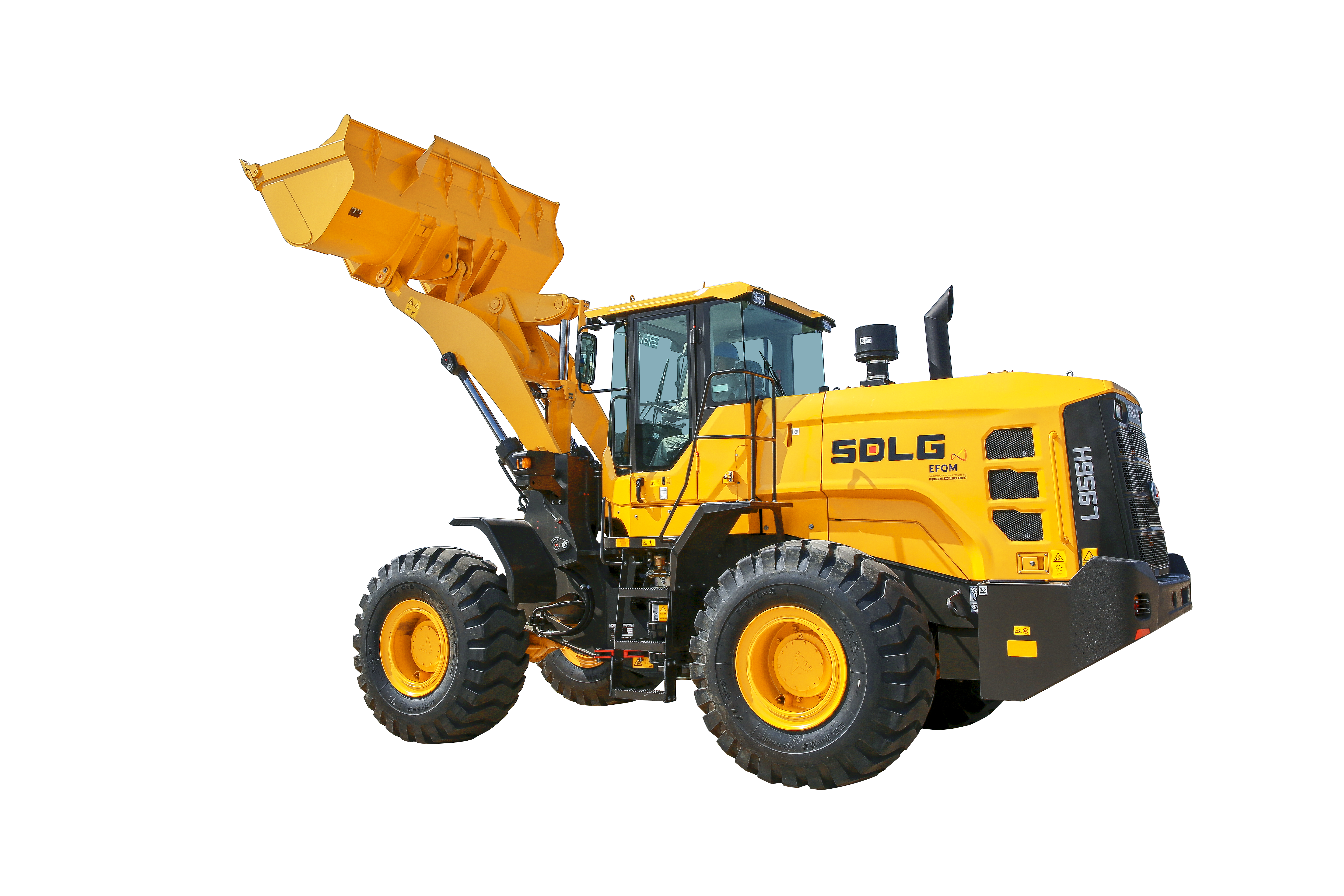

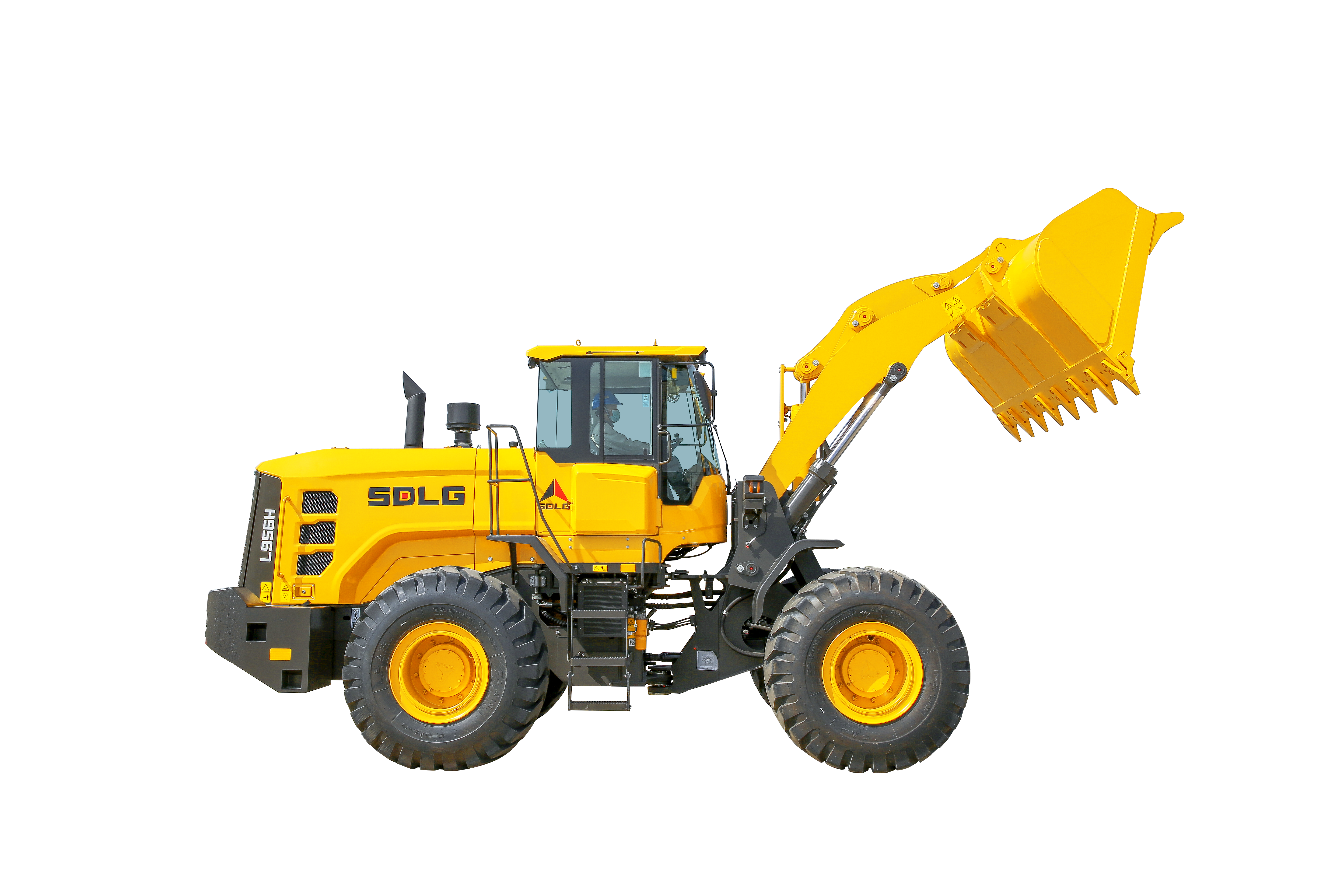

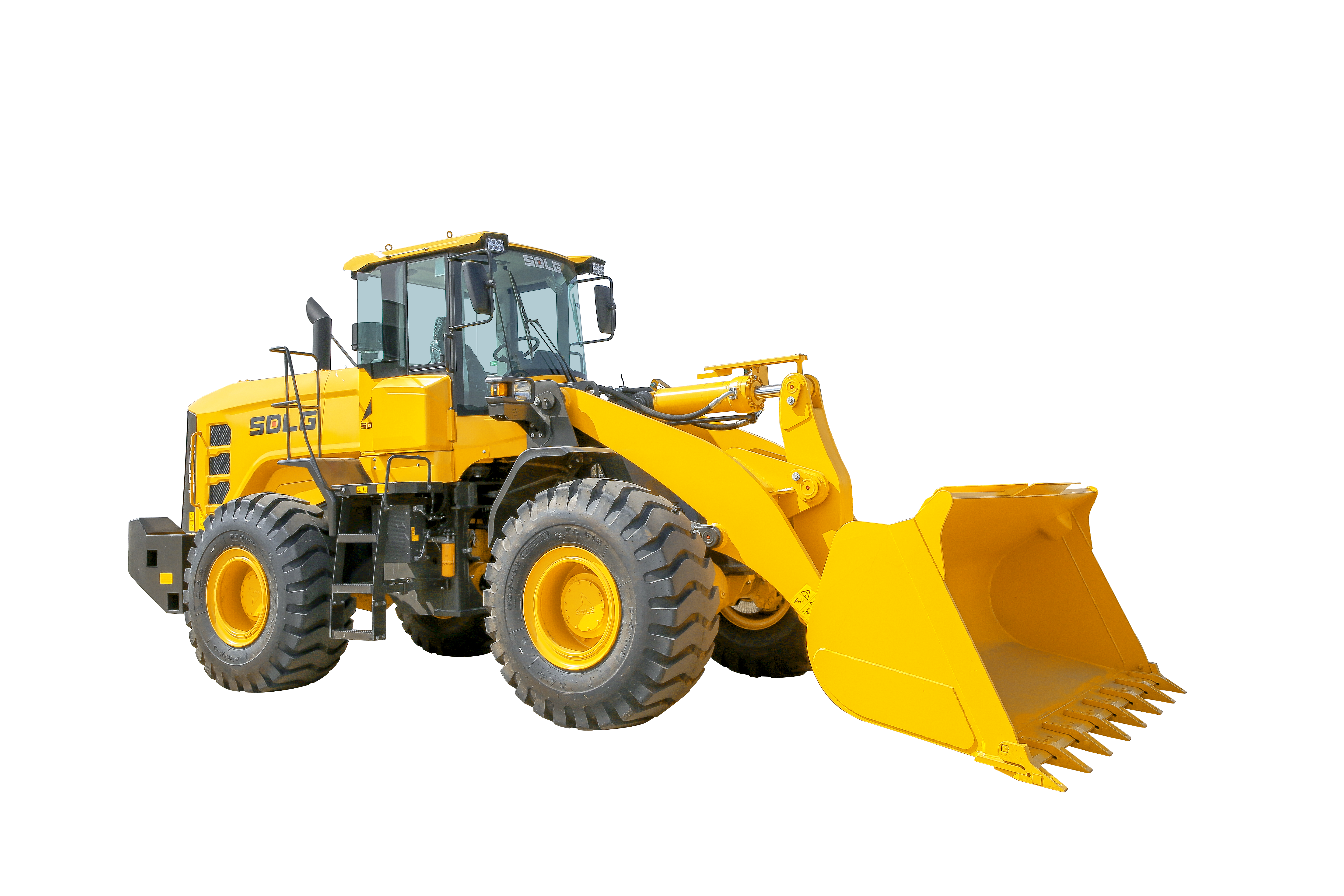

L956HPLUS is a medium-sized loader with a long wheelbase (3400mm) and a new exterior design, featuring a rated load capacity of 5.5T and suitability for composite working conditions in open areas. This machine offers strong combined traction and breakout force, delivering high loading efficiency. It is widely used in applications such as gravel yards, mixing stations, and coal yards, as well as heavier working conditions involving raw soil, wet sand, hard rock, and mineral powder—materials with relatively high density.
| Rated Load (kg) | 5500 |
| Length×Width×Height (mm) | 8630×3016×3466 |
| Wheel Base (mm) | 3400 |
| Max.Dumping Height (mm) | 3215 |
| Dumping Distance (mm) | 1300 |
| Steering Angel (°) | 36 |
| Emission Standard | GB 20891-2007 |
| Max.Tractive Force (kN) | 160 |
| Fuel Tank Capacity (L) | 300 |
| Standard Bucket Capacity (m³) | 4.0 |
| Operating Weight (kg) | 17650 |
| Rated Power (kW) | 162 |
| Engine Model | Weichai WD10G220E23 |
